| Brand Name: | XIANZI |
| Model Number: | bopp |
| MOQ: | 500kg |
| Price: | 2.2-2.5USD/kg |
| Payment Terms: | T/T |

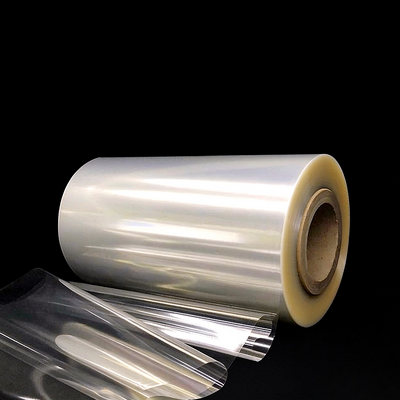

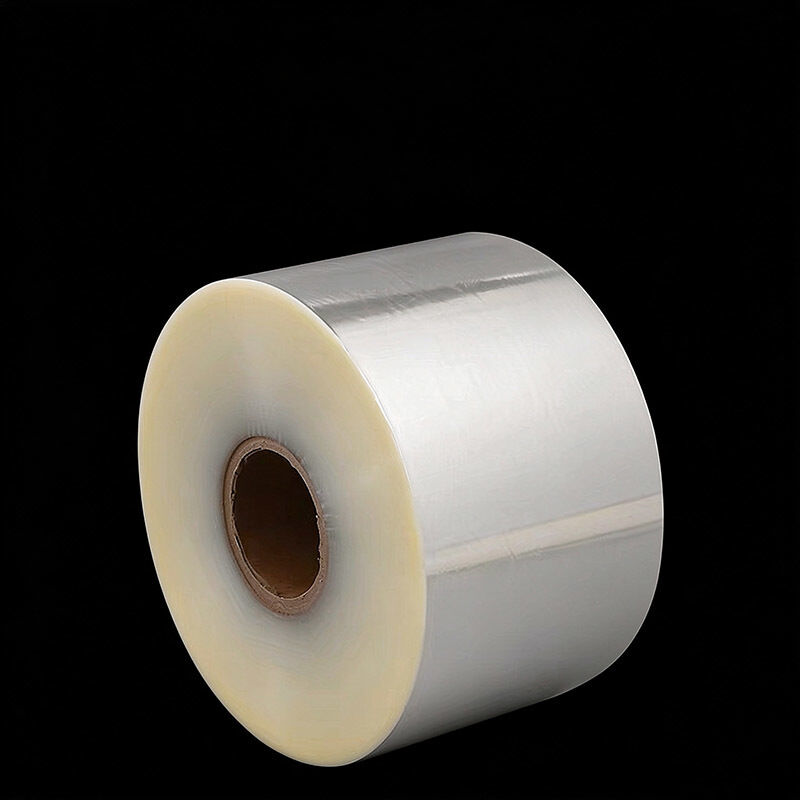

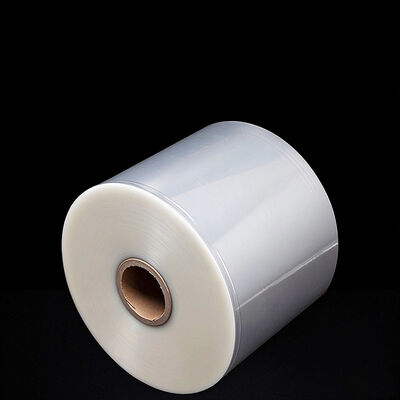

BOPP Heat Seal Film for Hardware Parts Packaging Clear Moisture Barrier 15-30μm
This BOPP heat seal film is intended for hardware parts packaging. Its high transparency allows quick identification of the appearance and specifications of screws, nuts, washers, and similar items. The base material is biaxially oriented polypropylene film with a heat seal layer, compatible with automatic packaging equipment. The film offers stable heat seal strength and good water vapor barrier properties, helping reduce the risk of moisture exposure for metal parts during storage and transport. It is suitable for individual or collective packaging of small hardware, electronic components, and various small metal parts.
| Parameter | Specification | Test Method | Standard Reference |
|---|---|---|---|
| Thickness | 15 – 30 μm (standard 18 / 20 / 25 μm) | ISO 4593 (unembossed film only) | ISO 4593:1993 |
| Width | 150 – 1000 mm (customizable) | Standard Gauge | Standard Gauge |
| Density | 0.90 – 0.91 g/cm³ | ISO 1183 | ISO 1183 |
| Tensile Strength (MD/TD) | ≥ 125 / 210 MPa | ISO 527-3:2018 | ISO 527-3:2018 |
| Elongation at Break (MD/TD) | ≤ 170% / ≤ 110% | ISO 527-3:2018 | ISO 527-3:2018 |
| Heat Seal Strength | ≥ 7 N/15mm | ASTM F88 | ASTM F88 |
| Light Transmittance | ≥ 91% | ASTM D1003 | ASTM D1003 |
| Haze | ≤ 2.5% | ASTM D1003 | ASTM D1003 |
| Gloss (45°) | ≥ 82 GU | ASTM D2457 | ASTM D2457 |
| Water Vapor Transmission Rate | ≤ 6.0 g/(m²·24h) (38°C, 90%RH) | ISO 15106 | ISO 15106 |
| Surface Tension | ≥ 38 mN/m | ISO 8296 | ISO 8296 |
| Heat Shrinkage (MD/TD) | ≤ 3% / ≤ 2% (120°C, 5min) | ISO 11501 | ISO 11501 |
| Roll Length | 4,000 – 10,000 m per roll | Counter system | Counter system |
| Core Diameter | 76 mm / 152 mm | Standard Gauge | Standard Gauge |
Thickness is measured per ISO 4593:1993 (for unembossed film). Tensile properties follow ISO 527-3:2018. Heat seal strength is tested per ASTM F88. Optical properties (light transmittance, haze) follow ASTM D1003, and gloss per ASTM D2457. Water vapor transmission rate is determined by ISO 15106, surface tension by ISO 8296, heat shrinkage by ISO 11501, and density by ISO 1183.
Screw, nut, and washer packaging
Small hardware tool packaging
Electronic component packaging
Small metal parts collective packaging
