| Brand Name: | XIANZI |
| Model Number: | Pof Low |
| MOQ: | 500kg |
| Price: | 3.5 usd/kg to 6.5 usd/kg |
| Payment Terms: | T/T |

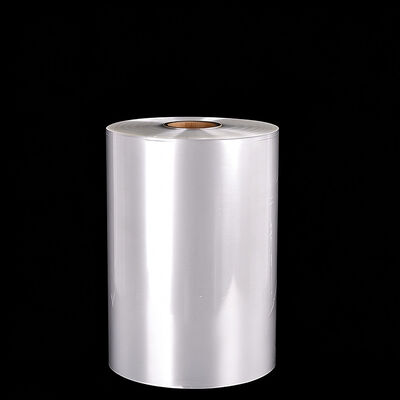

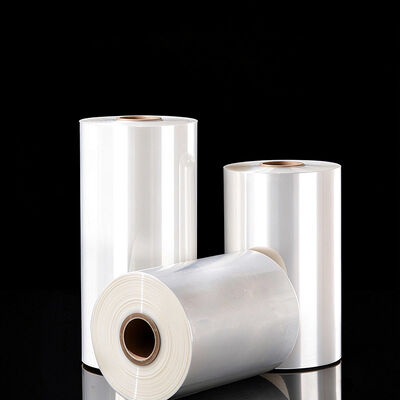

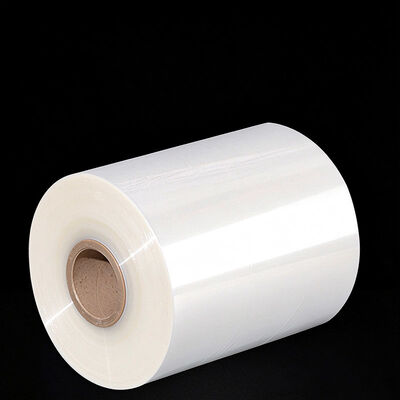

POF Low-Temp Shrink Film for Chocolate Center-Fold 12-20μm
This POF low-temperature shrink film is produced by multi-layer co-extrusion, specially designed for outer packaging of heat-sensitive products. Compared with standard shrink films, it starts shrinking at a lower temperature, completing the process within 60–90°C, avoiding deformation or melting of chocolate, candy, and similar items. The film offers high clarity and shrinks tightly around boxes to present product appearance. The center-fold structure suits automatic packaging machines for continuous operation, with stable sealing and low breakage. It is suitable for chocolate boxes, candy boxes, electronic product boxes, and other heat-sensitive products, as well as collective packaging of daily necessities requiring low-temperature shrinkage. Folded width, thickness, and roll length can be customized.
| Parameter | Specification | Test Method | Standard Reference |
|---|---|---|---|
| Thickness | 12 – 20 μm (standard 15 / 18 μm) | ISO 4593 (unembossed film) | ISO 4593:1993 |
| Folded Width | 200 – 750 mm (customizable) | Standard Gauge | Standard Gauge |
| Density | 0.91 – 0.93 g/cm³ | ISO 1183 | ISO 1183 |
| Tensile Strength (MD/TD) | ≥ 85 / 95 MPa | ISO 527-3:2018 | ISO 527-3:2018 |
| Elongation at Break (MD/TD) | ≥ 380% / ≥ 420% | ISO 527-3:2018 | ISO 527-3:2018 |
| Heat Seal Strength | ≥ 4.0 N/15mm | ASTM F88 | ASTM F88 |
| Light Transmittance | ≥ 88% | ASTM D1003 | ASTM D1003 |
| Haze | ≤ 4.0% | ASTM D1003 | ASTM D1003 |
| Gloss (45°) | ≥ 75 GU | ASTM D2457 | ASTM D2457 |
| Shrinkage (MD/TD) | ≥ 45% / ≥ 50% (80°C, 30s) | ASTM D2732 | ASTM D2732 |
| Shrinkage Temperature Range | 60 – 90°C | In-house method | In-house method |
| Surface Tension | ≥ 36 mN/m | ISO 8296 | ISO 8296 |
| Roll Length | 1,000 – 3,500 m per roll | Counter system | Counter system |
| Core Diameter | 76 mm / 152 mm | Standard Gauge | Standard Gauge |
This product is tested according to international standards: ISO 4593 for thickness, ISO 527-3 for tensile properties, ASTM F88 for heat seal strength, ASTM D1003 for light transmittance and haze, ASTM D2457 for gloss, ASTM D2732 for heat shrinkage, ISO 8296 for surface tension, and ISO 1183 for density. Low-temperature shrinkage performance is tested under in-house method at 60–90°C.
Chocolate box packaging
Candy box packaging
Electronic product box packaging
Other heat-sensitive product low-temperature shrink packaging
