| Brand Name: | XIANZI |
| Model Number: | ylx |
| MOQ: | 50 rolls |
| Price: | 5.9-7.6 usd/roll |
| Payment Terms: | T/T |

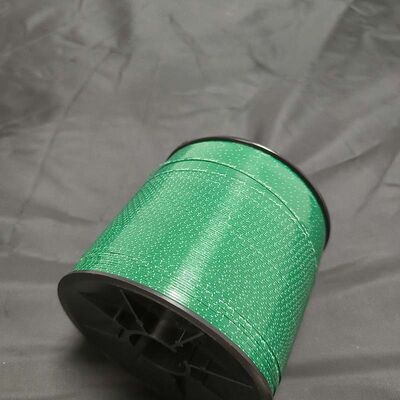

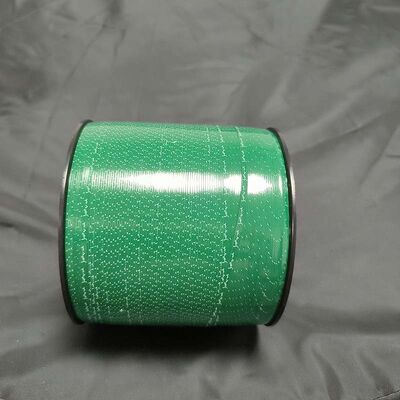

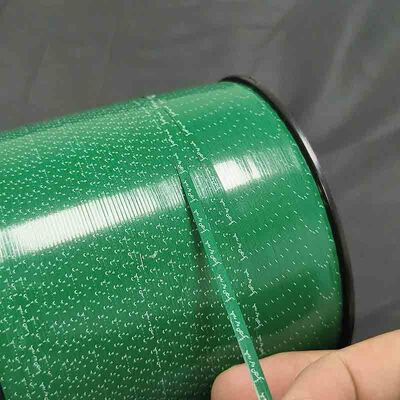

Wire Rope Marker Tape for Wire Rope Marking and Traceability 2.5mm to 6.0mm Custom Printing
This Wire Rope Marker Tape is designed for marking and traceability management of wire ropes. It uses high-strength PET or polyamide film as the base material, with abrasion-resistant information printed via gravure or flexographic printing. It is wound around a support element in spirally overlapping manner and worked into the gap between strands at the same twisting angle. It can be printed with manufacturer, specification, date, batch number, and service life, meeting the marking requirements of ISO 2408:2017. The product resists abrasion, grease, and chemicals, and stays legible at 100°C normal operating temperature and short-term 250°C. Custom printing is supported, with regular sizes in stock.
| Parameter | Specification | Test Method | Standard Reference |
|---|---|---|---|
| Width | 2.5 mm – 6.0 mm (standard 3.0 / 4.0 / 5.0 mm) | Standard Gauge | Standard Gauge |
| Base Material | Stretch-oriented PET / Polyamide | — | — |
| Base Film Thickness | 15 – 90 μm | ISO 4593 (unembossed base film only) | ISO 4593:1993 |
| Finished Total Thickness | 25 – 160 μm (including printing & adhesive) | Cross-section microscopy | In-house method |
| Tensile Strength (MD) | ≥ 165 MPa | ISO 527-3:2018 or ASTM D882 | ISO 527-3:2018 / ASTM D882 |
| Elongation at Break (MD) | ≤ 115% | ISO 527-3:2018 or ASTM D882 | ISO 527-3:2018 / ASTM D882 |
| Tear Strength | ≥ 105 kN/m | ISO 6383-1:2015 (Trouser tear method) | ISO 6383-1:2015 |
| Peel Adhesion (180°, stainless steel) | ≥ 0.55 N/mm | ISO 29862:2024 Method 1 | ISO 29862:2024 |
| Static Shear Adhesion | ≥ 35 min (25 mm × 25 mm, 1 kg load) | ISO 29863:2018 Method A | ISO 29863:2018 |
| Temperature Resistance | Normal 105°C, short-term 250°C | High-temperature aging test | In-house method |
| Chemical Resistance | Resistant to grease, lubricants, seawater | Immersion test | In-house method |
| Printing Content | Manufacturer, specification, batch No., date, logo, barcode | — | — |
| Spool Length | 6,000 – 14,000 m per roll | Counter system | Counter system |
| Core Diameter | 76 mm / 152 mm | Standard Gauge | Standard Gauge |
Tensile properties are tested per ISO 527-3:2018. Tear strength follows ISO 6383-1:2015 trouser method. Peel adhesion uses ISO 29862:2024 Method 1. Static shear adhesion follows ISO 29863:2018 Method A. ISO 4593:1993 applies only to unprinted base film thickness; finished total thickness is measured by cross-section microscopy. The marking content requirements of ISO 2408:2017 are fully met.
Round and compacted strand wire rope marking
Elevator wire rope identification
Crane wire rope traceability
Ropeway wire rope management
Marine mooring wire rope marking
Mine hoist wire rope identification
