| Brand Name: | XIANZI |
| Model Number: | ylx |
| MOQ: | 50 rolls |
| Price: | 5.9-7.6 usd/roll |
| Payment Terms: | T/T |

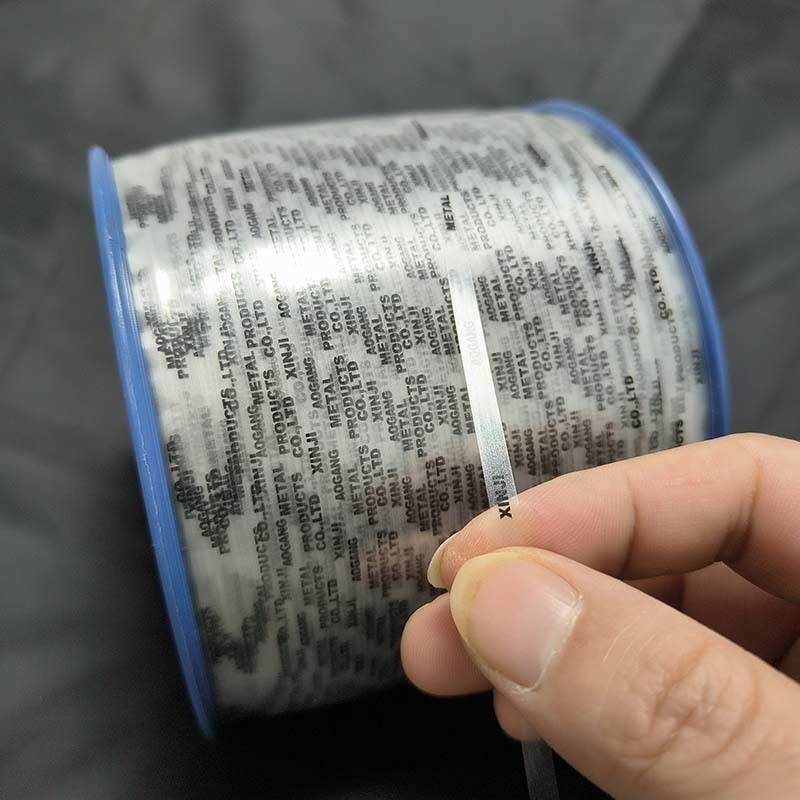

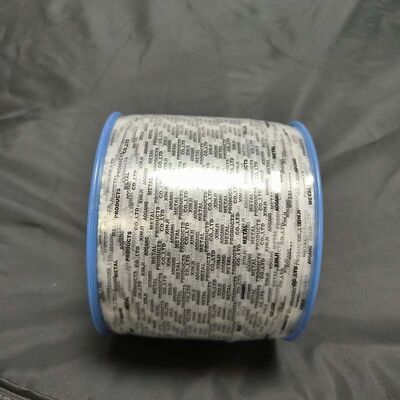

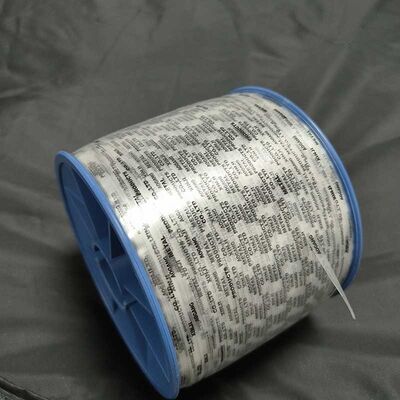

Wire Rope Marker Tape 30mic to 60mic for Wire Rope Marking Custom Printing
This Wire Rope Marker Tape uses stretch-oriented PET or polyolefin film with a thickness of 50mic to 100mic as the base material, with abrasion-resistant information printed on the surface for wire rope marking and traceability. It is spirally wound and embedded into the strand gaps, carrying data such as manufacturer, specification, batch, and date, meeting the marking requirements of ISO 2408:2017. The product resists oil and chemicals, operates continuously at 100°C, and withstands short-term 200°C. Custom printing is supported, with common sizes in stock.
| Parameter | Specification | Test Method | Standard Reference |
|---|---|---|---|
| Width | 2.0 mm – 5.5 mm (standard 2.5 / 3.0 / 4.0 mm) | Standard Gauge | Standard Gauge |
| Base Material | Stretch-oriented PET / Polyolefin | — | — |
| Base Film Thickness | 50 – 100 μm | ISO 4593 (unembossed base film only) | ISO 4593:1993 |
| Finished Total Thickness | 60 – 150 μm (including printing & adhesive) | Cross-section microscopy | In-house method |
| Tensile Strength (MD) | ≥ 150 MPa | ISO 527-3:2018 or ASTM D882 | ISO 527-3:2018 / ASTM D882 |
| Elongation at Break (MD) | ≤ 120% | ISO 527-3:2018 or ASTM D882 | ISO 527-3:2018 / ASTM D882 |
| Tear Strength | ≥ 115 kN/m | ISO 6383-1:2015 (Trouser tear method) | ISO 6383-1:2015 |
| Peel Adhesion (180°, stainless steel) | ≥ 0.5 N/mm | ISO 29862:2024 Method 1 | ISO 29862:2024 |
| Static Shear Adhesion | ≥ 30 min (25 mm × 25 mm, 1 kg load) | ISO 29863:2018 Method A | ISO 29863:2018 |
| Temperature Resistance | Normal 100°C, short-term 200°C | High-temperature aging test | In-house method |
| Chemical Resistance | Resistant to grease, lubricants, impregnating agents | Immersion test | In-house method |
| Printing Content | Manufacturer, specification, batch No., date, logo | — | — |
| Spool Length | 5,000 – 15,000 m per roll | Counter system | Counter system |
| Core Diameter | 76 mm / 152 mm | Standard Gauge | Standard Gauge |
Tensile properties are tested per ISO 527-3:2018. Tear strength follows ISO 6383-1:2015 trouser method. Peel adhesion uses ISO 29862:2024 Method 1. Static shear adhesion follows ISO 29863:2018 Method A. ISO 4593:1993 applies only to unprinted base film thickness; finished total thickness is measured by cross-section microscopy. The product meets the marking requirements of ISO 2408:2017.
Crane wire rope marking
Elevator wire rope identification
Ropeway wire rope traceability
Marine engineering wire rope management
Mine hoist wire rope marking
Safety ropes, traction ropes identification
